液流觀察器性能規(guī)范Technical Data
|
公稱壓力
Nominal Pressure(MPa) |
殼體試驗(MPa)
Shell Test |
密封試驗(MPa)
Seal Test |
上密封試驗(MPa)
Have and Seal Testing |
適用介質
Applicable Medium |
適用溫度
Applicable Temperature |
|
1.6 |
2.4 |
1.76 |
1.76 |
天然氣、液化氣等介質 |
|
|
2.5 |
3.75 |
2.75 |
2.75 |
NATURAL GAS．LPG ancl |
-40 - 80℃ |
|
14.0 |
6.0 |
4.4 |
4.4 |
other types of medium |
|
|
|
|
|
|
|
液流觀察器主要零部件材質Materials of Main Parts
|
零件名稱PartsName |
閥體、閥蓋Body/Cove |
閥桿、閥瓣Stem/Disk |
密封面Seal Face |
填料Packing |
|
材料Material |
WCB |
不銹鋼Cast Steel |
不銹鋼和尼龍1010 |
聚四氟乙烯PTFE |
|
|
|
|
|
液流觀察器基本尺寸Dimensions
|
公稱通徑 |
尺寸Dimensions(mm) |
|
DN(mm) |
LID Di D2 bIfIH Hi Doz-①d |
液流觀察器性能規(guī)范Technical Data
|
適用介質
Applicable Medium |
使用溫度
Use Temperature |
|
海水、淡水、油類（不包括重油）
Sea water．Fresh water．
Oils (Except fuel oil) |
≤1200C |
|
|

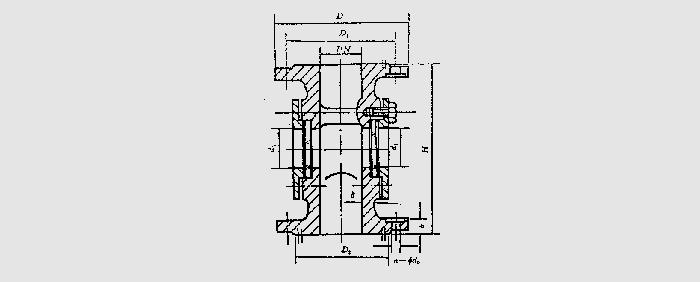

液流觀察器J型基本尺寸Dimensions
液流觀察器主要零部件材質Materials of Main Parts
|
零件名稱Parts Name |
材料Material |
|
本體Body |
HT200 |
|
蓋板Side Cover |
Q235-A |
|
透明板Plate |
鋼化玻璃Toughened glass |
|
|
|
公稱壓力 |
公稱通徑 |
結構尺寸Dimensions |
壁厚 |
法蘭Flange |
螺栓Bolts |
玻璃厚度
Thickness |
重量
Weight |
|
PN(MPa) |
DN(mm) |
H |
d1 |
Thickness
δ |
D |
Di |
D2 |
do |
b |
n |
Th |
of Glass |
( kg) |
|
0.4 |
40 |
160 |
40 |
8 |
125 |
93 |
74 |
15 |
16 |
6 |
M14 |
6 |
5.6 |
|
|
50 |
164 |
50 |
8 |
135 |
103 |
84 |
15 |
16 |
6 |
M14 |
6 |
6.8 |
|
|
65 |
196 |
65 |
9 |
155 |
123 |
104 |
15 |
15 |
6 |
M14 |
8 |
11.8 |
|
0.25 |
80 |
220 |
80 |
9 |
170 |
138 |
118 |
15 |
15 |
8 |
M14 |
8 |
13.1 |
|
|
100 |
250 |
100 |
10 |
190 |
158 |
138 |
15 |
15 |
8 |
M14 |
8 |
16.6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
液流觀察器JS犁基本尺寸Dimensions
|
公稱壓力 |
公稱通徑 |
結構尺寸Dimensions |
壁厚 |
法蘭Flange |
螺栓Bolts |
玻璃厚度
Thickness |
重量
Weight |
|
PN(MPa) |
DN(mm) |
H |
d1 |
Thickness
δ |
D |
Di |
D2 |
do |
b |
n |
Th |
of Glass |
(kg) |
|
|
20 |
110 |
20 |
7 |
90 |
65 |
50 |
11 |
14 |
4 |
M10 |
6 |
0.95 |
|
|
25 |
140 |
25 |
7 |
100 |
75 |
60 |
11 |
14 |
4 |
M10 |
6 |
1.43 |
|
0.4 |
32 |
140 |
32 |
7 |
120 |
90 |
70 |
14 |
16 |
4 |
M12 |
6 |
4.64 |
|
|
40 |
160 |
40 |
8 |
130 |
100 |
80 |
14 |
16 |
4 |
M12 |
6 |
6.22 |
|
|
50 |
164 |
50 |
8 |
140 |
110 |
90 |
14 |
16 |
4 |
M12 |
6 |
6.95 |
|
|
65 |
196 |
65 |
9 |
160 |
130 |
110 |
14 |
16 |
4 |
M12 |
8 |
12.11 |
|
|
80 |
220 |
80 |
9 |
190 |
150 |
128 |
18 |
18 |
4 |
M16 |
8 |
14.14 |
|
|
100 |
250 |
100 |
10 |
210 |
170 |
148 |
18 |
18 |
4 |
M16 |
8 |
18.41 |
|
0.25 |
125 |
280 |
125 |
10 |
240 |
200 |
178 |
18 |
20 |
8 |
M16 |
10 |
25.30 |
|
|
150 |
310 |
150 |
11 |
265 |
225 |
202 |
18 |
20 |
8 |
M16 |
10 |
29.14 |
|
|
175 |
338 |
175 |
11 |
295 |
255 |
232 |
18 |
22 |
8 |
M16 |
12 |
30.20 |
|
|
200 |
370 |
200 |
11 |
320 |
280 |
258 |
18 |
22 |
8 |
M16 |
12 |
31.25 |
