船用外螺紋青銅填料旋塞閥性能規(guī)范Technical Data |
|
公稱壓力Nominal Pressure(MPa) |
公稱通徑Nominal Diameter(mm) |
適用介質Applicable Medium |
|
0.1 |
32 |
海水、淡水、滑油、燃油
|
|
1.6 |
20\25 |
Sea water. Fresh water. Lu bricanting oil, Fuel oil
|
|
2.5 |
6\10\15 |
|
|
|
| |
|
船用外螺紋青銅填料旋塞閥主要零部件材質Materials of Main Parts |
|
零件名稱Parts Name
|
材料Material |
|
|
名稱Name 牌號Marks |
|
閥體、塞芯Body/Core |
鑄錫青銅Cast Tin Bronze ZCuSn102n2 |
|
| |
|

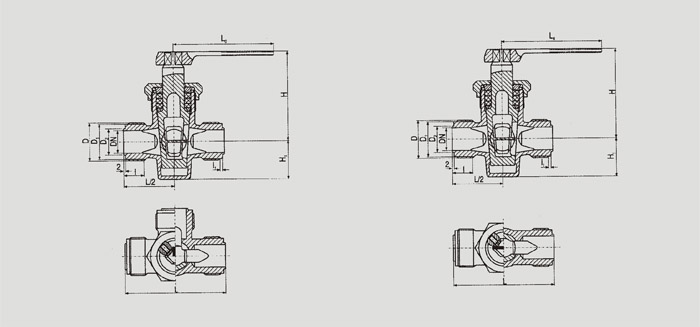

船用外螺紋青銅填料旋塞閥基本尺寸Dimensions |
|
公稱通徑 |
結構尺寸Structure D |
mension |
螺紋接頭Thread Joint |
手柄Handle |
參考重量Weight(kg) |
|
DN(mm) |
L
|
Hi
|
H
|
D
|
Di
|
D2
|
l
|
L0 |
A型 |
T型 |
L型 |
|
6 |
70 |
20 |
60 |
M22×1 5 |
|
|
12 |
100 |
0.42 |
0.48 |
0.49 |
|
10 |
78 |
27 |
72 |
M27×1 5 |
|
|
15 |
110 |
0.69 |
0.71 |
0.72 |
|
15 |
92 |
37 |
92 |
M36×2 |
|
|
16 |
115 |
1.07 |
1.24 |
1.26 |
|
20 |
98 |
40 |
99 |
M36×2 |
33 |
24 |
20 |
125 |
1.52 |
1.70 |
1.72 |
|
25 |
106 |
42 |
108 |
M42×2
|
39 |
29 |
20 |
140 |
1.90 |
2.22 |
2.24 |
|
32 |
126 |
49 |
120 |
M48X2
|
45 |
36 |
20 |
160 |
3.47 |
3.79 |
3.89 | |
